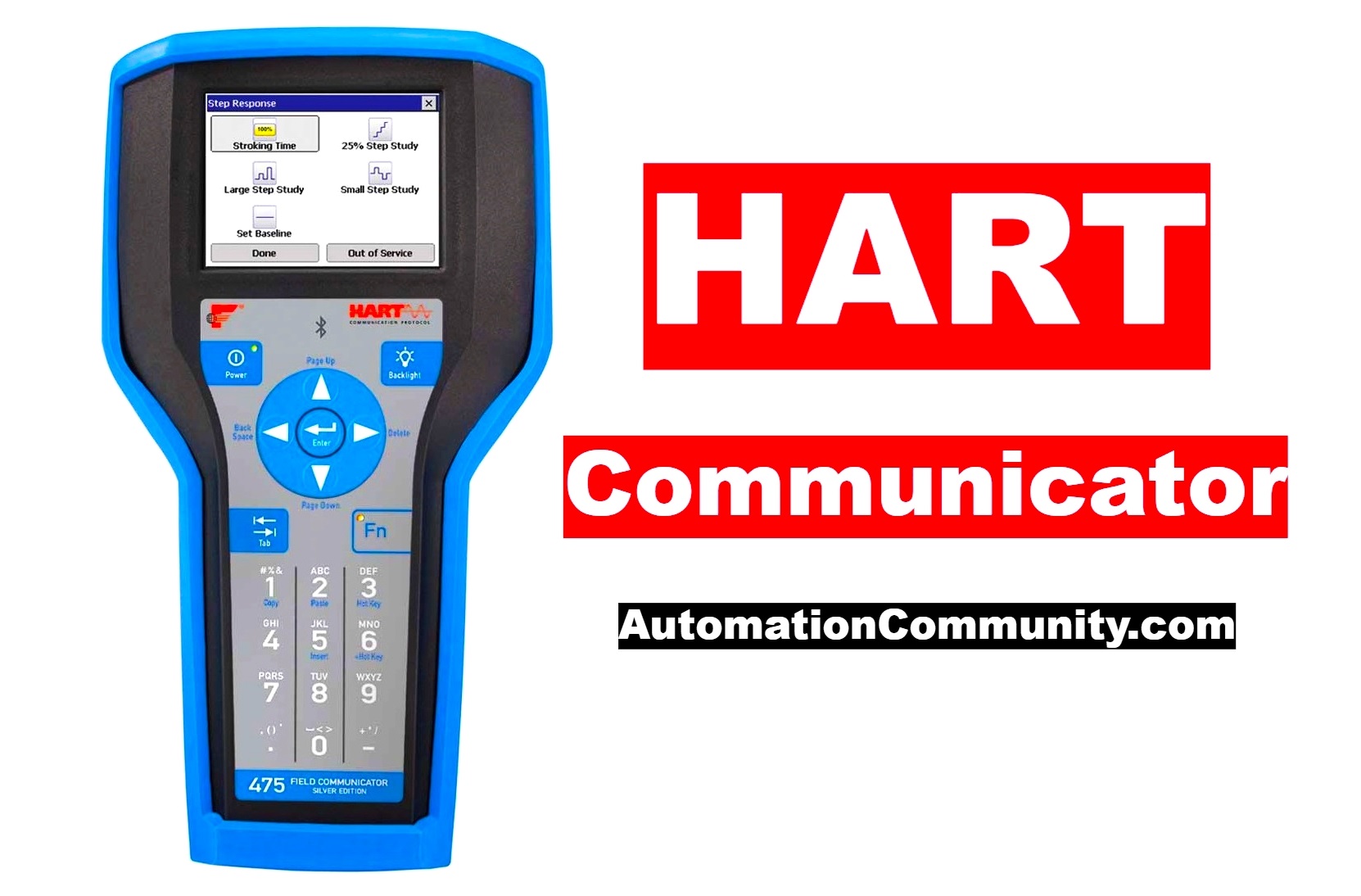

HART Communicator

HART Communicator - Test Your Instrumentation Knowledge

HART (Highway Addressable Remote Transducer) is a popular communication protocol used in industrial automation and process control systems to communicate with smart devices, such as sensors and actuators.

Our MCQs cover a range of topics, including HART commands, device configuration, process variables, and more. Whether you’re a beginner or a seasoned professional, these questions will help you assess your level of expertise and prepare for HART certification exams.

What is the purpose of the HART communication protocol?

a) To transfer data from field instruments to control systems
b) To transfer data between field instruments
c) To transfer power to field instruments
d) All of the above

Answer: a) To transfer data from field instruments to control systems.

Explanation: HART (Highway Addressable Remote Transducer) communication protocol is used to transmit digital and analog data from smart field instruments to control systems. It allows bi-directional communication, enabling devices to be monitored, configured, and calibrated remotely.

What is the maximum number of devices that can be connected to a HART network?

a) 16
b) 32
c) 64
d) 128

Answer: b) 32

Explanation: HART communication protocol supports up to 32 devices on a single network. This includes primary masters, secondary masters, and HART-enabled field instruments.

Which of the following is a HART primary master?

a) Smart transmitter
b) Control system
c) Fieldbus gateway
d) All of the above

Answer: b) Control system

Explanation: A HART primary master is a device that initiates and controls the communication on the HART network. Examples of primary masters include control systems, programmable logic controllers (PLC), and distributed control systems (DCS).

Which of the following is a HART secondary master?

a) Smart transmitter
b) Control system
c) Fieldbus gateway
d) All of the above

Answer: c) Fieldbus gateway

Explanation: A HART secondary master is a device that can communicate with HART-enabled field instruments but cannot initiate or control communication. Examples of secondary masters include fieldbus gateways and handheld communicators.

What is the maximum cable length allowed in a HART network?

a) 500 m
b) 1 km
c) 2 km
d) 5 km

Answer: c) 2 km

Explanation: HART communication protocol supports cable lengths up to 2 km. However, the actual cable length that can be used depends on factors such as cable type, signal strength, and interference.

HART Communicator - Test Your Instrumentation Knowledge

Which of the following HART modes supports two-way communication?

a) Point-to-point mode
b) Multi-drop mode
c) Burst mode
d) All of the above

Answer: d) All of the above

Explanation: All HART modes (point-to-point burst mode) support two-way communication between field instruments and control systems. This allows for remote configuration, monitoring, and diagnostic capabilities.

Which of the following is a common use case for HART communication?

a) Monitoring the temperature of a process vessel
b) Controlling the flow rate of a pump
c) Measuring the pressure in a pipeline
d) All of the above

Answer: d) All of the above

Explanation: HART communication protocol can be used in various industrial applications, including monitoring temperature, controlling flow rate, measuring pressure, and more. Smart field instruments equipped with HART communication can provide valuable data to improve process efficiency and reduce maintenance costs.

What is the function of a HART modem?

a) To convert analog signals to digital signals
b) To convert digital signals to analog signals
c) To modulate and demodulate HART signals
d) None of the above

Answer: c) To modulate and demodulate HART signals

Explanation: A HART modem is a device that allows communication between a HART-enabled field instrument and a control system. The modem modulates and demodulates the HART signals, allowing for bi-directional communication over the same wiring used for the analog process signal.

What could be the reason for a HART device not responding to a command?

a) Device is offline
b) Faulty wiring
c) Incorrect command syntax
d) All of the above

Answer: d) All of the above

Explanation: There could be various reasons why a HART device is not responding to a command. It could be due to the device being offline, faulty wiring, or incorrect command syntax.

What could be the cause of a HART device displaying a “device error” message?

a) Device hardware failure
b) Firmware corruption
c) Communication timeout
d) All of the above

Answer: d) All of the above

Explanation: A “device error” message on a HART device could indicate various issues, including hardware failure, firmware corruption, or communication timeout.

How can you verify if a HART device is properly connected to the network?

a) Check the device status
b) Check the device address
c) Send a test command to the device
d) Check the network topology

Answer: b) Check the device address

Explanation: To verify if a HART device is properly connected to the network, you can check the device address to ensure it is configured correctly and matches the expected address.

What could be the cause of a HART device displaying a “communication error” message?

a) Network congestion
b) Incorrect wiring
c) Device malfunction
d) All of the above

Answer: d) All of the above

Explanation: A “communication error” message on a HART device could be caused by various factors, including network congestion, incorrect wiring, or device malfunction.

What could be the reason for a HART device displaying incorrect measurement readings?

a) Calibration issues
b) Electrical interference
c) Device damage
d) All of the above

Answer: d) All of the above

Explanation: Incorrect measurement readings on a HART device could be caused by calibration issues, electrical interference, or device damage.

How can you troubleshoot a HART device that is not providing accurate measurement readings?

a) Check the calibration settings
b) Check the electrical connections
c) Check for device damage
d) All of the above
Answer: d) All of the above

Explanation: To troubleshoot a HART device that is not providing accurate measurement readings, you should check the calibration settings, electrical connections, and look for any signs of device damage.

What could be the cause of a HART device displaying a “loop power failure” message?

a) Faulty loop power supply
b) Excessive loop current
c) Incorrect wiring
d) All of the above

Answer: d) All of the above

Explanation: A “loop power failure” message on a HART device could be caused by a faulty loop power supply, excessive loop current, or incorrect wiring.

How can you troubleshoot a HART device displaying a “loop power failure” message?

a) Check the loop power supply voltage
b) Check for excessive loop current
c) Check the wiring for any faults
d) All of the above

Answer: d) All of the above

Explanation: To troubleshoot a HART device displaying a “loop power failure” message, you should check the loop power supply voltage, look for any signs of excessive loop current, and check the wiring for any faults.

What could be the reason for a HART device displaying a “device not found” message?

a) Incorrect device address
b) Faulty wiring
c) Network congestion
d) All of the above
Answer: d) All of the above

When you attempt to connect your HART Communicator to a device, you receive an error message that says “Device not responding.” What could be causing this issue?

A. The device is malfunctioning
B. The HART Communicator has a low battery
C. The device is not properly wired or grounded
D. The HART Communicator is not configured properly

Answer: C. The device is not properly wired or grounded.

Explanation: Proper wiring and grounding is crucial for effective communication between the HART Communicator and the device. If there is an issue with the wiring or grounding, it can cause communication problems and error messages such as “Device not responding.”

You are attempting to calibrate a pressure transmitter with your HART Communicator, but the readings are not stable. What could be causing this issue?

A. The pressure transmitter is faulty
B. The HART Communicator is not calibrated properly
C. There is too much noise in the environment
D. The pressure transmitter is not properly installed

Answer: C. There is too much noise in the environment.

Explanation: Interference from external sources can cause issues with stable readings during calibration. This can result in errors or inaccuracies in the calibration. It is important to identify and reduce sources of noise to ensure accurate calibration.

You are attempting to troubleshoot a device using your HART Communicator, but the readings are inconsistent and erratic. What could be causing this issue?

A. The device is malfunctioning
B. The HART Communicator is not calibrated properly
C. There is too much electrical interference in the environment
D. The device is not properly wired or grounded

Answer: C. There is too much electrical interference in the environment.

Explanation: Electrical interference can cause issues with the signal and prevent accurate readings from the device. This can result in inconsistent and erratic readings, making troubleshooting difficult. It is important to identify and reduce sources of electrical interference to ensure effective troubleshooting.

Which of the following HART commands is used to read the process variable from a smart field instrument?

a) PV Read
b) Universal Command 0
c) Loop Current Read
d) None of the above

Answer: b) Universal Command 0

Explanation: Universal Command 0 (UC0) is a HART command used to read the process variable from a HART-enabled field instrument. It is one of the most commonly used HART commands.

Which of the following HART commands is used to write a new setpoint to a smart field instrument?

a) PV Write
b) Universal Command 1
c) Loop Current Write
d) None of the above

Answer: b) Universal Command 1

Explanation: Universal Command 1 (UC1) is a HART command used to write a new setpoint to a HART-enabled field instrument. It is one of the most commonly used HART commands for control applications.

Which of the following HART commands is used to calibrate a smart field instrument?

a) PV Calibration
b) Universal Command 5
c) Loop Current Calibration
d) None of the above

Answer: b) Universal Command 5

Explanation: Universal Command 5 (UC5) is a HART command used to initiate calibration procedures on a HART-enabled field instrument. It can be used to calibrate various parameters, such as zero and span.

Which of the following is a disadvantage of using HART communication in industrial applications?

a) Limited data transfer rate
b) Limited cable length
c) Limited number of devices supported
d) None of the above

Answer: a) Limited data transfer rate

Explanation: HART communication protocol has a limited data transfer rate compared to other communication protocols, such as Foundation Fieldbus and Profibus. This can be a disadvantage in applications that require high-speed data transfer.

What is the function of a HART handheld communicator?

a) To configure and calibrate HART-enabled field instruments
b) To transmit process variables to a control system
c) To modulate and demodulate HART signals
d) None of the above

Answer: a) To configure and calibrate HART-enabled field instruments

Explanation: A HART handheld communicator is a portable device used to communicate with HART-enabled field instruments. It allows for configuration, calibration, and diagnostic capabilities in the field without the need for a control system or a computer.

Which of the following HART commands is used to configure the device tag of a smart field instrument?

a) PV Tag
b) Universal Command 13
c) Loop Current Tag
d) None of the above

Answer: b) Universal Command 13

Explanation: Universal Command 13 (UC13) is a HART command used to configure the device tag of a HART-enabled field instrument. The device tag is a user-defined identifier used to identify the field instrument in the control system.

Which of the following is a common method for troubleshooting HART communication issues?

a) Checking cable connections and grounding
b) Replacing the HART modem
c) Resetting the field instrument to factory defaults
d) None of the above

Answer: a) Checking cable connections and grounding

Explanation: Checking cable connections and grounding is a common method for troubleshooting HART communication issues. This can help identify and resolve issues related to signal interference, cable damage, or loose connections.

What is the function of a HART multiplexer?

a) To combine multiple HART signals onto a single wire
b) To convert HART signals to a different communication protocol
c) To provide power to HART-enabled field instruments
d) None of the above

Answer: a) To combine multiple HART signals onto a single wire

Explanation: A HART multiplexer is a device used to combine multiple HART signals onto a single wire. This can reduce wiring and installation costs by allowing multiple devices to communicate over the same cable.

What is the purpose of the HART Universal Command Set?

a) To provide a standardized set of commands for HART-enabled devices
b) To allow HART devices to communicate with other industrial protocols
c) To provide diagnostic capabilities for HART-enabled devices
d) None of the above

Answer: a) To provide a standardized set of commands for HART-enabled devices

Explanation: The HART Universal Command Set (UCS) is a standardized set of commands that provides a common language for HART-enabled devices to communicate with each other. This allows for seamless integration and interoperability between different devices from different manufacturers.

Which of the following is a common method for updating HART device firmware?

a) Using a HART communicator
b) Using a computer with specialized software
c) Replacing the field instrument with a new version
d) None of the above

Answer: b) Using a computer with specialized software

Explanation: Updating HART device firmware typically involves connecting the field instrument to a computer with specialized software. The software can then update the firmware and configure the device as needed.

Which of the following is a benefit of HART communication for asset management?

a) Improved maintenance scheduling
b) Reduced downtime
c) Increased equipment lifespan
d) All of the above

Answer: d) All of the above

Explanation: HART communication provides valuable data for asset management, including maintenance scheduling, downtime reduction, and increased equipment lifespan. By providing diagnostic and calibration capabilities, HART-enabled devices can help reduce maintenance costs and improve process efficiency.

Which of the following is an example of a HART-enabled field device?

a) A motor control center
b) A programmable logic controller (PLC)
c) A pressure transmitter
d) RTD
Answer: c) A pressure transmitter

Explanation: A pressure transmitter is an example of a field device that can be HART-enabled. HART communication can provide valuable data such as pressure readings and diagnostic information for maintenance and troubleshooting purposes.

Which of the following is a limitation of HART communication for remote device monitoring?

a) Limited data transmission range
b) High power consumption
c) Limited compatibility with other industrial protocols
d) None of the above

Answer: a) Limited data transmission range

Explanation: HART communication has a limited data transmission range compared to other industrial protocols, which can limit its effectiveness for remote device monitoring applications. However, this can be mitigated by using signal repeaters or other advanced communication techniques.

What is the purpose of the HART Long Burst message?

a) To transmit large amounts of data from the field instrument to the control system
b) To transmit configuration data to the field instrument
c) To provide diagnostic information for the field instrument
d) None of the above

Answer: a) To transmit large amounts of data from the field instrument to the control system

Explanation: The HART Long Burst message is used to transmit large amounts of data from the field instrument to the control system. This can be useful for applications such as firmware updates or downloading historical data.

Which of the following is a benefit of HART communication for predictive maintenance?

a) Improved fault detection
b) Reduced maintenance costs
c) Increased equipment uptime
d) All of the above

Answer: d) All of the above

Explanation: HART communication provides valuable data for predictive maintenance, including improved fault detection, reduced maintenance costs, and increased equipment uptime. By providing diagnostic and calibration capabilities, HART-enabled devices can help identify potential issues before they become major problems.

Which of the following is a disadvantage of HART communication compared to other digital communication protocols?

a) Limited compatibility with legacy systems
b) Limited support for advanced diagnostic functions
c) Limited data transmission rates
d) None of the above

Answer: b) Limited support for advanced diagnostic functions

Explanation: While HART communication provides valuable diagnostic capabilities, it may not support advanced diagnostic functions that are available in other digital communication protocols. However, this can vary depending on the specific implementation of HART used in the application.

What is the purpose of the HART Device Description (DD) file?

a) To provide device-specific information for HART-enabled devices
b) To provide a standardized set of commands for HART communication
c) To provide diagnostic capabilities for HART-enabled devices
d) None of the above

Answer: a) To provide device-specific information for HART-enabled devices

Explanation: The HART Device Description (DD) file contains device-specific information for HART-enabled devices, including configuration data, diagnostic information, and calibration parameters. This allows the HART communicator to communicate with the device in a standardized and efficient manner.

Which of the following is a benefit of HART communication for process optimization?

a) Improved process control
b) Reduced process variability
c) Increased process efficiency
d) All of the above
Answer: d) All of the above

Explanation: HART communication provides valuable data for process optimization, including improved process control, reduced process variability, and increased process efficiency. By providing real-time data and diagnostic information, HART-enabled devices can help optimize the process and improve overall performance.

Which of the following is a common application of HART communication?

a) Water treatment
b) HVAC systems
c) Oil and gas production
d) All of the above
Answer: d) All of the above

Explanation: HART communication is commonly used in a wide range of industrial applications, including water treatment, HVAC systems, and oil and gas production. Its flexibility and compatibility with various systems make it a popular choice for many different applications.

What is the purpose of the HART Device Type Code?

a) To identify the manufacturer of the HART-enabled device
b) To identify the specific type of HART-enabled device
c) To provide a unique identification number for the HART-enabled device
d) None of the above

Answer: b) To identify the specific type of HART-enabled device

Explanation: The HART Device Type Code is a code that identifies the specific type of HART-enabled device. This code is used by the HART communicator to determine the appropriate commands and configuration data for the device.

What is the purpose of the HART Universal Command Set (UCS)?

a) To provide a standardized set of commands for HART communication
b) To provide diagnostic capabilities for HART-enabled devices
c) To provide device-specific information for HART-enabled devices
d) None of the above

Answer: a) To provide a standardized set of commands for HART communication

Explanation: The HART Universal Command Set (UCS) is a standardized set of commands for HART communication. This allows HART communicators to communicate with a wide range of HART-enabled devices in a standardized and efficient manner.

You are attempting to communicate with a device using your HART Communicator, but the device is not responding. What should you do first?

A. Check the wiring and grounding of the device
B. Check the battery level of the HART Communicator
C. Check the configuration of the HART Communicator
D. Check the configuration of the device

Answer: A. Check the wiring and grounding of the device.

Explanation: Proper wiring and grounding are crucial for effective communication between the HART Communicator and the device. If there is an issue with the wiring or grounding, it can cause communication problems and prevent the device from responding to the HART Communicator.

You are attempting to read the configuration data from a device using your HART Communicator, but the data is garbled and unreadable. What could be causing this issue?

A. The device is malfunctioning
B. The HART Communicator is not configured properly
C. There is too much electrical interference in the environment
D. The device is not properly wired or grounded

Answer: C. There is too much electrical interference in the environment.

Explanation: Electrical interference can cause issues with the signal and prevent clear reading of the configuration data. It is important to identify and reduce sources of electrical interference to ensure clear communication between the HART Communicator and the device.

You are attempting to update the firmware on a device using your HART Communicator, but the update fails. What could be causing this issue?

A. The device is not compatible with the HART Communicator
B. The HART Communicator is not updated to the latest version
C. The device is not properly wired or grounded
D. There is an issue with the power supply to the device

Answer: A. The device is not compatible with the HART Communicator.

Explanation: Not all devices are compatible with all versions of the HART Communicator. It is important to verify compatibility before attempting to update the firmware to prevent errors or issues with the device.

You are attempting to calibrate a temperature transmitter with your HART Communicator, but the readings are not accurate. What could be causing this issue?

A. The temperature transmitter is faulty
B. The HART Communicator is not calibrated properly
C. The temperature transmitter is not installed properly
D. There is too much electrical interference in the environment

Answer: B. The HART Communicator is not calibrated properly.

Explanation: If the HART Communicator is not calibrated properly, it can cause inaccurate readings during calibration of the temperature transmitter. It is important to verify proper calibration before attempting to calibrate a device.

You are attempting to troubleshoot a device using your HART Communicator, but the device is not responding to any commands. What could be causing this issue?

A. The device is malfunctioning
B. The HART Communicator is not configured properly
C. The device is not properly wired or grounded
D. There is an issue with the power supply to the device

Answer: D. There is an issue with the power supply to the device.

Explanation: If the device is not receiving power, it will not be able to respond to any commands from the HART Communicator.

Which of the following is a limitation of HART communication for wireless applications?

a) Limited data transmission rates
b) Limited compatibility with legacy systems
c) Limited range for wireless transmission
d) None of the above

Answer: c) Limited range for wireless transmission

Explanation: HART communication has a limited range for wireless transmission compared to other wireless communication protocols, which can limit its effectiveness for wireless applications. However, this can be mitigated by using signal repeaters or other advanced communication techniques.

Which of the following is a benefit of HART communication for system integration?

a) Improved compatibility with legacy systems
b) Reduced integration costs
c) Increased system flexibility
d) All of the above

Answer: d) All of the above

Explanation: HART communication provides valuable data for system integration, including improved compatibility with legacy systems, reduced integration costs, and increased system flexibility. By providing a standardized communication protocol, HART-enabled devices can be easily integrated into a wide range of systems.

Which of the following is a limitation of HART communication for cybersecurity?

a) Limited support for advanced security features
b) Limited compatibility with other industrial protocols
c) Limited bandwidth for data transmission
d) None of the above

Answer: a) Limited support for advanced security features

Explanation: While HART communication provides basic security features, it may not support advanced security features that are available in other digital communication protocols. However, this can vary depending on the specific implementation of HART used in the application.

What is the maximum update rate for HART communication?

a) 1 update per second
b) 4 updates per second
c) 8 updates per second
d) 10 updates per second

Answer: b) 4 updates per second

Explanation: The maximum update rate for HART communication is 4 updates per second. However, the update rate may be lower depending on factors such as loop configuration and device compatibility.

Which of the following is a benefit of HART communication for plant-wide integration?

a) Improved plant-wide visibility
b) Simplified integration procedures
c) Reduced integration costs
d) All of the above

Answer: d) All of the above

Explanation: HART communication provides valuable data for plant-wide integration, including improved plant-wide visibility, simplified integration procedures, and reduced integration costs. By providing a standard communication protocol for device integration, HART-enabled devices can help streamline the integration process and improve overall plant performance.

Read Next:
