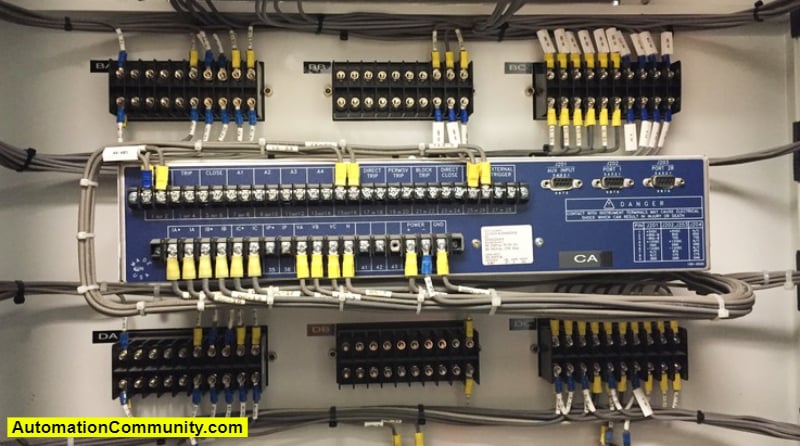

100 MCQs on Protective Relays for In-Depth Learning
Discover the world of Protective Relays through 100 simple yet effective MCQs. Enhance your learning and grasp the fundamentals of electrical protection effortlessly.
Which of the following is NOT a primary function of a protective relay?
A. Detecting abnormal system conditions
B. Isolating faulted equipment
C. Initiating corrective actions
D. Providing backup power
Answer: D
Explanation: Providing backup power, is not a primary function of protective relays. Their primary focus is on fault detection and isolation.
Overcurrent relays operate on the principle of:
A. Change in voltage
B. Rate of change of current
C. Magnitude of current exceeding a preset threshold
D. Impedance measurement
Answer: C
Explanation: Current exceeding a preset threshold, is the operating principle of overcurrent relays. They trip when the current in a circuit exceeds a predetermined level.
Differential relays use the principle of:
A. Time-domain comparison
B. Frequency-domain analysis
C. Current magnitude comparison between incoming and outgoing feeders
D. Monitoring power factor
Answer: C
Explanation: Current magnitude comparison, is the key principle of differential relays. They compare the currents entering and leaving a protected zone to detect internal faults.
Distance relays measure:
A. Impedance of the protected line
B. Voltage at different points along the line
C. Current flowing through the line
D. Power factor of the line
Answer: A
Explanation: Impedance measurement, is the operating principle of distance relays. They estimate the distance to a fault based on the impedance seen from the relay location.
Directional relays distinguish between:
A. Fault current and load current
B. AC and DC currents
C. Single-phase and three-phase faults
D. Forward and reverse power flow
Answer: D
Explanation: Forward and reverse power flow, is the primary function of directional relays. They determine the direction of fault current to allow selective tripping and minimize equipment damage.
Which of the following types of relays is LEAST suited for protecting overhead lines against lightning strikes?
A. Distance Relays
B. Overcurrent Relays
C. Surge Arresters
D. Differential Relays
Answer: D
Explanation: Differential relays compare incoming and outgoing currents and are ineffective against short bursts of high current caused by lightning.
What is the primary advantage of using solid-state relays compared to electromechanical relays for protection applications?
A. Faster operation time
B. High current carrying capacity
C. Lower maintenance requirements
D. All of the above
Answer: D
Explanation: Solid-state relays offer faster tripping times, lower maintenance due to no moving parts, and can handle higher currents without contact wear.
A directional overcurrent relay is set to trip if the fault current exceeds 150% of the nominal current and flows in the forward direction. Under normal operating conditions with 120% load current, will the relay trip?
A. Yes, due to exceeding the current setting.
B. Yes, due to forward direction of current.
C. No, because the current is below the setting.
D. No, because both current and direction conditions are not met.
Answer: D
Explanation: The relay requires both conditions, high current and forward direction, to initiate tripping.
What is the main drawback of using time-overcurrent relays compared to inverse-time relays for overload protection?
A. Higher sensitivity to transient currents
B. Slower tripping for severe overloads
C. Increased risk of nuisance tripping
D. Difficulty in coordinating with other relays
Answer: B
Explanation: Time-overcurrent relays have fixed tripping times, resulting in delayed tripping for high overcurrents compared to inverse-time relays with faster tripping curves.
Which of the following types of faults does a bus differential relay NOT effectively detect?
A. Busbar fault between feeders
B. Open-circuit fault on one feeder
C. Internal fault within a connected transformer
D. Unbalanced current on the busbar
Answer: C
Explanation: Bus differential relays compare incoming and outgoing currents on the busbar itself, and internal transformer faults wouldn’t affect this balance.
What is the primary purpose of setting a time delay on an undervoltage relay?
A. Prevent nuisance tripping during voltage dips
B. Coordinate tripping with other protection devices
C. Allow motors to start without tripping
D. All of the above
Answer: D
Explanation: Time delay on undervoltage relays helps avoid tripping due to temporary voltage dips, allows motor startup inrush currents to pass, and coordinates with upstream protections.
How does a pilot relay scheme for line protection benefit power system operation?
A. Faster fault clearing for remote faults
B. Reduced risk of cascading outages
C. Improved communication between relays
D. All of the above
Answer: D
Explanation: Pilot relays communicate between stations for fast tripping of faulted lines, minimizing damage and preventing wider outages.
What is the main operating principle of a frequency relay?
A. Measuring deviation from nominal system frequency
B. Detecting changes in current waveform shape
C. Monitoring harmonic content in the power signal
D. Comparing voltage levels at different points in the network
Answer: A
Explanation: Frequency relays trip when the system frequency falls below or rises above acceptable limits, indicating abnormal system conditions.
Which type of relay is often used to protect motors from overheating due to excessive overload?
A. Thermal overload relay
B. Differential relay
C. Distance relay
D. Undervoltage relay
Answer: A
Explanation: Thermal overload relays sense motor winding temperature and trip the circuit before overheating occurs, protecting the motor from damage.
What is the main advantage of using digital protective relays compared to analog relays?
A. Higher accuracy and sensitivity
B. Enhanced communication capabilities
C. Easier integration with automation systems
D. All of the above
Answer: D
Explanation: Digital relays offer higher accuracy, better diagnostics, improved communication for remote monitoring, and easier integration with modern automation systems.
Which of the following factors is NOT considered when setting the pickup current for an overcurrent relay?
A. Nominal load current of the protected equipment
B. Time-current characteristic curve of the relay
C. Fault current levels expected during various fault scenarios
D. Ambient temperature of the relay installation
Answer: D
Explanation: While ambient temperature affects relay life and accuracy, it doesn’t directly influence the pickup current setting, which focuses on fault current levels and coordination with other relays.
How does a directional impedance relay distinguish between fault current direction and load current?
A. Comparing phase angles of voltage and current
B. Measuring active and reactive power components
C. Analyzing the impedance seen from the relay location
D. Checking the polarity of the current waveform
Answer: C
Explanation: Directional impedance relays use impedance characteristics to determine fault direction, differentiating between high impedance of line faults and low impedance of load currents.
What is the main benefit of using fiber optic communication channels for inter-relay communication in modern protection schemes?
A. Increased immunity to electromagnetic interference
B. Faster data transmission speed
C. Improved security and data encryption
D. All of the above
Answer: D
Explanation: Fiber optic communication offers immunity to EMI, high data rates for faster tripping decisions, and enhanced security compared to traditional copper communication channels.
Which type of relay is most suitable for protecting generators against stator winding faults?
A. Differential relay
B. Overcurrent relay
C. Distance relay
D. Thermal overload relay
Answer: A
Explanation: Differential relays compare generator input and output currents, effectively detecting internal winding faults while ignoring normal load currents.
What is the main disadvantage of using electromechanical relays compared to solid-state relays in protection applications?
A. Lower accuracy and sensitivity
B. Susceptibility to mechanical wear and tear
C. Higher power consumption
D. Limited communication capabilities
Answer: B
Explanation: Electromechanical relays have moving parts that can wear out over time, affecting their accuracy and reliability, while solid-state relays offer higher long-term stability.
How can the tripping time of an inverse-time overcurrent relay be adjusted?
A. By changing the relay type
B. By modifying the CT ratio
C. By setting the time dial setting
D. Both b and c
Answer: D
Explanation: The tripping time of an inverse-time relay can be adjusted by selecting the appropriate CT ratio for current scaling and choosing the desired time dial setting on the relay itself.
What is the primary purpose of a pilot relay scheme for transformer protection?
A. Blocking unwanted tripping during overloads
B. Isolating transformer internal faults quickly
C. Coordinating tripping with downstream relays
D. All of the above
Answer: D
Explanation: Pilot relays exchange information between transformer terminals, enabling fast tripping for internal faults, blocking unnecessary tripping for external issues, and coordinating with other protective devices.
What type of fault does a ground-overcurrent relay primarily detect?
A. Phase-to-phase faults on overhead lines
B. Single-phase faults on underground cables
C. Overloads exceeding normal load current
D. Ground faults in equipment windings
Answer: D
Explanation: Ground-overcurrent relays are specifically designed to detect faults where current flows through the ground path, indicating issues like insulation breakdown within equipment windings.
How does a neutral grounding resistor (NGR) affect the operation of a differential relay protecting a transformer?
A. Reduces the sensitivity to internal faults
B. Increases the tripping time for winding faults
C. Limits the circulating current during normal operation
D. All of the above
Answer: C
Explanation: NGR restricts the flow of current in the neutral path, preventing unwanted tripping of the differential relay due to circulating currents during normal load conditions.
Which of the following types of relays is LEAST suitable for protecting underground cables against low-impedance faults?
A. Distance relay
B. Differential relay
C. Directional overcurrent relay
D. Earth fault relay
Answer: A
Explanation: Distance relays rely on measuring impedance to locate faults, but underground cables have inherent low impedance, making accurate fault location and isolation challenging.
How does a carrier-current pilot relay scheme exchange information between protected lines?
A. Direct fiber optic communication link
B. High-frequency signal superimposed on the power line
C. Dedicated communication cable buried with the power line
D. Radio frequency transmission through the air
Answer: B
Explanation: Carrier-current pilot relays utilize high-frequency signals piggybacked on the power line itself for communication and information exchange between terminals.
What is the main limitation of time-overcurrent relays for motor overload protection?
A. Inability to differentiate between starting current and overload
B. Sensitivity to transient load fluctuations
C. Lack of coordination with other protection devices
D. Dependence on accurate CT ratio selection
Answer: A
Explanation: Time-overcurrent relays may trip unnecessarily during motor startup due to high inrush current, which can be mistaken for an overload condition.
Which type of relay is most effective in protecting power transformers against high inrush currents during energization?
A. Overcurrent relay with time delay
B. Differential relay with high sensitivity
C. Harmonic restraint relay
D. Distance relay with impedance selection
Answer: C
Explanation: Harmonic restraint relays filter out harmonic components present in inrush currents, allowing differentiation from actual fault currents and preventing unnecessary tripping during transformer energization.
What is the primary function of a directional power relay in a protection scheme?
A. Measuring instantaneous power flow direction
B. Detecting reverse power flow from protected equipment
C. Tripping in response to unbalanced phases and power swings
D. Initiating corrective actions for undervoltage or overvoltage conditions
Answer: B
Explanation: Directional power relays monitor the direction of power flow and trip the circuit if power starts flowing back into the protected equipment, indicating a potential fault.
Which type of fault can a Buchholz relay effectively detect in oil-filled transformers?
A. Overloading exceeding the rated capacity
B. Internal winding faults and gas buildup
C. Open-circuit faults on transformer bushings
D. Short-circuit faults on external feeder connections
Answer: B
Explanation: Buchholz relays utilize gas detection and flow monitoring within the transformer oil to detect incipient internal faults and gas production before major damage occurs.
How can overvoltage relays be set to differentiate between temporary voltage spikes and sustained overvoltage conditions?
A. By adjusting the pickup voltage level
B. By setting a time delay for tripping
C. By analyzing the rate of change of voltage
D. Both b and c
Answer: D
Explanation: Overvoltage relays can be configured with a time delay to avoid tripping due to short voltage spikes and can also utilize rate-of-change measurement to distinguish between sudden rises and gradual voltage increases.
What type of backup protection is typically provided by an undercurrent relay in a power system?
A. Overloading of transformers or feeders
B. Single-phase faults on overhead lines
C. Loss of excitation in generators
D. Busbar faults within switchgear
Answer: C
Explanation: Undercurrent relays can act as backup protection for generator loss of excitation, where insufficient current output due to field failure can be detected and an alarm or trip initiated.
Which characteristic of a directional overcurrent relay determines the angle range for fault detection?
A. Pickup current setting
B. Time dial setting
C. Operating characteristic curve
D. Directional element angle setting
Answer: D
Explanation: The directional element angle setting defines the specific range of angles within which the relay will trip based on the phase angle comparison between current and voltage, allowing discrimination between forward and reverse fault currents.
Which of the following factors is NOT considered when selecting a suitable CT ratio for an overcurrent relay?
A. Nominal current rating of the protected equipment
B. Pickup current setting of the relay
C. Maximum fault current expected during a short circuit
D. Type of cable or busbar used in the circuit
Answer: D
Explanation: CT ratio selection primarily depends on current levels and relay settings, not specific conductor type.
What is the primary disadvantage of using electromechanical relays compared to microprocessor-based relays for protection applications?
A. Lower sensitivity to fault currents
B. Slower tripping times for critical faults
C. Lack of communication capabilities with automation systems
D. All of the above
Answer: D
Explanation: Microprocessor relays offer higher sensitivity, faster tripping, and built-in communication compared to electromechanical relays.
How does a pilot relay scheme for transformer differential protection compare to bus differential protection?
A. Pilot relays offer wider zone protection than bus differential.
B. Pilot relays require communication channels, while bus differential relays do not.
C. Bus differential relays are more sensitive to internal transformer faults.
D. Pilot relays are faster for tripping on external faults compared to bus differential.
Answer: B
Explanation: Communication between terminals is a key feature of pilot relay schemes, unlike bus differential relays directly comparing incoming and outgoing currents.
What is the main purpose of setting a dropout setting on a negative sequence overcurrent relay?
A. Prevent nuisance tripping during motor starting currents.
B. Block tripping for unbalanced load conditions with negative sequence components.
C. Coordinate tripping with upstream protection devices for unbalanced faults.
D. Allow temporary overload conditions exceeding the nominal pickup value.
Answer: B
Explanation: Dropout setting on negative sequence relays ignores normal negative sequence currents from unbalanced loads, preventing unnecessary tripping.
Which type of relay is specifically designed to protect generators against reverse power flow conditions?
A. Overcurrent relay with directional element
B. Reactive power relay with overvoltage limit
C. Undervoltage relay with time delay setting
D. Reverse power relay with adjustable threshold
Answer: D
Explanation: Reverse power relays directly monitor power flow direction and trip the circuit if power starts flowing back into the generator, indicating abnormal operation.
How can the coordination time curves of overcurrent relays be adjusted to ensure selective tripping?
A. By modifying the CT ratios for each relay.
B. By setting different pickup current levels for each relay.
C. By adjusting the time dial settings for each relay.
D. All of the above
Answer: D
Explanation: CT ratios, pickup currents, and time dial settings can be adjusted to achieve optimal coordination and ensure the closest relay to the fault trips first, minimizing equipment damage.
What is the main challenge associated with using distance relays for protecting overhead lines with distributed generation?
A. Difficulty in setting impedance values due to varying line lengths.
B. Sensitivity to transient voltage spikes caused by lightning strikes.
C. Interference from harmonic currents produced by inverter-based sources.
D. Inability to differentiate between internal faults and load currents from distributed generation units.
Answer: D
Explanation: Distributed generation can create impedance signatures similar to faults, making accurate fault location and isolation challenging for distance relays.
What type of test is most effective for verifying the communication functionality of a digital protective relay?
A. Insulation resistance test using a megger.
B. Short-circuit withstand test to simulate fault conditions.
C. Loopback test to check communication channels and data integrity.
D. Relay pickup test to confirm current sensitivity and tripping parameters.
Answer: C
Explanation: Loopback testing allows verifying the communication path and protocol functionalities of digital relays without simulating actual faults.
Which of the following types of faults is a ground fault relay LEAST effective in detecting?
A. High-impedance faults on overhead lines
B. Single-phase grounding faults on underground cables
C. Open-circuit faults on transformer bushings
D. Double-phase short-circuit faults with balanced currents
Answer: C
Explanation: Ground fault relays primarily monitor current imbalances caused by grounding faults, not open-circuit conditions which disrupt current flow entirely.
How does a pilot relay scheme for busbar protection enhance reliability compared to traditional overcurrent relays?
A. Pilot relays offer faster tripping for internal busbar faults.
B. Pilot relays improve coordination with upstream and downstream protection devices.
C. Pilot relays reduce the risk of nuisance tripping due to temporary load fluctuations.
D. All of the above
Answer: D
Explanation: Pilot relays offer faster tripping, improved coordination, and reduced nuisance tripping due to their communication-based approach to busbar fault detection.
What is the primary function of a harmonic restraint relay in a protection scheme?
A. Block tripping during motor starting inrush currents.
B. Filter out harmonic components present in fault currents.
C. Detect overloads exceeding the rated capacity of protected equipment.
D. Initiate corrective actions for undervoltage or overvoltage conditions.
Answer: A
Explanation: Harmonic restraint relays filter out harmonics typical of motor startup currents, preventing unnecessary tripping during normal operation.
Which type of relay is most suitable for protecting underground cables against high-resistance faults?
A. Distance relay with impedance measurement
B. Differential relay with high sensitivity
C. Earth fault relay with sensitive current threshold
D. Directional overcurrent relay with phase angle setting
Answer: C
Explanation: High-resistance faults on underground cables often involve small leakage currents to ground, which earth fault relays with sensitive thresholds can effectively detect.
How can digital protective relays be configured to provide information for post-fault analysis and event recording?
A. By setting time-stamping functions for recording fault events.
B. By enabling data storage capabilities on internal memory or external devices.
C. By implementing fault waveform capture and oscillogram recording features.
D. All of the above
Answer: D
Explanation: Digital relays offer various options like timestamps, data storage, waveform capture, and oscillogram recording to provide valuable data for analyzing and understanding past fault events.
What is the main risk associated with using undervoltage relays with very low pickup settings?
A. Increased sensitivity to transient voltage dips causing nuisance tripping.
B. Delayed tripping for severe undervoltage conditions due to high settings.
C. Inability to differentiate between line voltage drops and equipment internal faults.
D. Lack of coordination with upstream protection devices for voltage dips.
Answer: A
Explanation: Setting undervoltage relays too low can lead to tripping during temporary dips instead of sustained undervoltage conditions.
How can the settings of a distance relay be adjusted to provide backup protection for a transformer differential relay?
A. By setting the impedance reach beyond the transformer terminals.
B. By choosing a time dial setting with longer tripping delay than the differential relay.
C. By configuring the directional element to ignore currents flowing into the transformer.
D. All of the above
Answer: D
Explanation: Setting the reach beyond the transformer, using a longer time dial, and ignoring inward currents configure the distance relay as backup protection, tripping only if the differential relay fails to act.
What type of test is most suitable for verifying the functionality of a Buchholz relay in a transformer protection scheme?
A. Short-circuit withstand test to simulate fault conditions.
B. Insulation resistance test using a megger.
C. Gas pressure simulation test on the relay chamber.
D. Relay pickup test with simulated gas production in the transformer oil.
Answer: C
Explanation: Directly testing the Buchholz relay’s pressure sensitivity by simulating gas production under controlled conditions is the most relevant test for its functionality.
What is the key advantage of using a directional overcurrent relay with phase comparison over a simple overcurrent relay for protecting phase conductors?
A. Faster tripping times for high fault currents.
B. Improved coordination with downstream protection devices.
C. Increased sensitivity to detect low-level fault currents.
D. Ability to distinguish between forward and reverse fault currents.
Answer: D
Explanation: Directional element with phase comparison allows discrimination between normal load currents and fault currents flowing in the opposite direction, preventing unnecessary tripping.
How can the tripping characteristic of an inverse-time overcurrent relay be adjusted to provide optimal coordination with upstream and downstream relays?
A. By selecting the appropriate CT ratio for current scaling.
B. By modifying the pickup current setting of the relay.
C. By choosing the inverse-time curve characteristic with suitable time multiplier.
D. All of the above
Answer: C
Explanation: Different inverse-time curves offer varying tripping delays over different current ranges, allowing adjustment for efficient coordination with other relays in the protection scheme.
What is the primary function of a synchronizing relay in a power system?
A. Detect and protect against undervoltage and overvoltage conditions.
B. Monitor and compare voltage phase angles before connecting equipment.
C. Initiate corrective actions for unbalanced phases and power swings.
D. Trip circuit breakers during overload or fault conditions.
Answer: B
Explanation: Synchronizing relays ensure proper phase alignment before paralleling generators or connecting power lines, preventing large circulating currents and equipment damage.
How can fiber optic communication be integrated into a backup protection scheme for circuit breakers?
A. By transmitting trip commands from backup relays to remote breakers.
B. By using fiber optic sensors for monitoring critical parameters like line current.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Fiber optic communication can be used for both transmitting trip commands to backup breakers and for sensing critical parameters remotely, enhancing backup protection performance.
What is the main drawback of using thermal overload relays compared to electronic overload relays for motor protection?
A. Slower response time to overload conditions.
B. Lack of adjustable settings and calibrated protection curves.
C. Susceptibility to ambient temperature variations affecting accuracy.
D. All of the above
Answer: D
Explanation: Thermal relays suffer from slow response times, limited settings, and sensitivity to ambient temperature, while electronic relays offer faster response, adjustable settings, and better accuracy.
Which type of relay is most suitable for protecting overhead lines against wind-induced conductor movement?
A. Directional overcurrent relay with phase comparison.
B. Distance relay with impedance measurement and zone selection.
C. Line current differential relay with high sensitivity.
D. Pilot relay scheme with communication between line terminals.
Answer: B
Explanation: Distance relays can identify faults based on impedance seen from the relay location, making them effective for detecting transient fault currents caused by conductor movement and differentiating them from normal load currents.
What is the main benefit of using a pilot relay scheme for line differential protection compared to traditional current transformer-based differential relays?
A. Faster tripping times for faults within the protected zone.
B. Improved immunity to electromagnetic interference on the power line.
C. Reduced sensitivity to unbalances between incoming and outgoing currents.
D. All of the above
Answer: A
Explanation: Pilot relays communicate between line terminals, enabling rapid fault detection and isolation compared to traditional differential relays relying solely on local current comparison.
How can the voltage setting of an undervoltage relay be adjusted to provide time delay for motor starting?
A. By setting a time dial delay after the voltage drops below the setting.
B. By choosing a voltage setting slightly higher than the motor’s starting voltage.
C. By utilizing a separate undervoltage starter relay with adjustable voltage threshold.
D. Both A and B
Answer: D
Explanation: Setting a time delay and choosing a voltage setting slightly above the motor’s starting voltage allows the undervoltage relay to tolerate the temporary voltage dip during motor starting while still providing protection against sustained undervoltage conditions.
What is the main disadvantage of using directional overcurrent relays with phase comparison in high-impedance fault scenarios?
A. Reduced sensitivity to low fault currents.
B. Susceptibility to transient voltage dips causing nuisance tripping.
C. Inability to differentiate between forward and reverse fault currents.
D. Difficulty in setting the directional element angle appropriately.
Answer: D
Explanation: For high-impedance faults, choosing the correct directional element angle for accurate fault discrimination becomes more challenging due to the weak current signal and its phase characteristics.
How can the settings of a differential relay be adjusted to prevent nuisance tripping due to circulating currents in transformer neutrals?
A. By increasing the pickup current setting of the relay.
B. By setting a time delay for tripping after exceeding the pickup current.
C. By utilizing a harmonic restraint feature to filter out circulating harmonics.
D. All of the above
Answer: C
Explanation: Harmonic restraint in differential relays allows ignoring the specific harmonic components present in circulating currents, preventing unnecessary tripping while still detecting internal transformer faults.
What type of communication technology is most suitable for inter-relay communication in geographically dispersed power networks?
A. Fiber optic cables offering high bandwidth and immunity to interference.
B. Microwave communication relays for line-of-sight signal transmission.
C. Power line carrier communication utilizing the existing power lines for signal transmission.
D. Satellite communication for long-distance data transmission.
Answer: D
Explanation: While other options have limitations in range or susceptibility to interference, satellite communication offers reliable long-distance data exchange between geographically dispersed substations and relays.
How can the tripping characteristic of an inverse-time overcurrent relay be adjusted to provide optimal selectivity with downstream electronic relays?
A. By choosing a longer time dial setting compared to the electronic relays.
B. By utilizing a steeper inverse-time curve for faster tripping on high currents.
C. By configuring the CT ratio to match the current rating of the protected equipment.
D. Both A and B
Answer: D
Explanation: A combination of a longer time dial and a steeper inverse-time curve ensures that the upstream overcurrent relay trips before the downstream electronic relays for any fault within its zone, achieving proper selectivity.
What is the primary function of a loss-of-excitation relay in a generator protection scheme?
A. Detect and protect against overspeed conditions exceeding safe limits.
B. Monitor and trip the circuit breaker if the generator loses its field excitation.
C. Initiate corrective actions for high voltage or undervoltage conditions.
D. Provide backup protection for overcurrent relays in case of faults.
Answer: B
Explanation: Loss of excitation can lead to uncontrolled overvoltage and damage to the generator, which the relay detects by monitoring field current or other indicators and initiates tripping.
How can the sensitivity of a directional overcurrent relay be adjusted to ensure reliable fault detection for low-level currents?
A. By setting a lower pickup current threshold for the relay.
B. By choosing a CT ratio with higher current scaling factor.
C. By utilizing a time dial setting with faster tripping times.
D. All of the above
Answer: A
Explanation: Lowering the pickup current allows the relay to detect even small fault currents exceeding the set value, increasing sensitivity for low-level fault scenarios.
Which type of relay is most suitable for protecting generators against stator winding ground faults?
A. Overcurrent relay with directional element and phase comparison.
B. Differential relay with high sensitivity and neutral earthing resistor.
C. Earth fault relay with adjustable current threshold and time delay.
D. Distance relay with impedance measurement and ground fault detection.
Answer: B
Explanation: Since stator winding ground faults involve small leakage currents through the neutral path, a differential relay with high sensitivity and a neutral earthing resistor to limit circulating currents offers effective protection.
What is the key advantage of using microprocessor-based overcurrent relays compared to electromechanical relays for feeder protection?
A. Faster tripping times for fault detection and isolation.
B. Improved coordination with upstream and downstream protection devices.
C. Increased accuracy and sensitivity to low-level fault currents.
D. All of the above
Answer: D
Explanation: Microprocessor relays offer faster tripping, better coordination, increased sensitivity, and additional functionalities compared to electromechanical relays.
How can the settings of a distance relay be adjusted to protect a long transmission line against high-impedance faults near the end of the line?
A. By setting the impedance reach to cover the entire line length.
B. By choosing a more sensitive impedance characteristic with lower reach settings.
C. By utilizing a directional element with phase angle compensation for line angle.
D. All of the above
Answer: B
Explanation: Using a more sensitive characteristic and setting the reach slightly shorter than the line length allows the distance relay to detect high-impedance faults near the end without tripping for normal load currents.
What is the main benefit of using negative sequence overcurrent relays for stator winding fault protection in motors?
A. Faster tripping times compared to conventional overcurrent relays.
B. Improved discrimination between motor starting currents and fault currents.
C. Enhanced coordination with backup protection devices for external faults.
D. All of the above
Answer: B
Explanation: Negative sequence currents are primarily present during fault conditions, allowing the relay to differentiate them from the normal negative sequence components produced during motor starting, reducing nuisance tripping.
How can fiber optic communication technology be used to enhance the security of inter-relay communication in critical infrastructure?
A. By providing high bandwidth and data transfer rates for faster relay responses.
B. By offering immunity to electromagnetic interference and signal hacking attempts.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Fiber optic communication offers both high speed and high security for relay communication, making it valuable for protecting critical infrastructure from cyber threats and interference.
What type of test is most suitable for verifying the functionality of a harmonic restraint relay in a protection scheme?
A. Short-circuit simulation test to inject fault currents.
B. Insulation resistance test to check internal component integrity.
C. Relay pickup test with simulated harmonic current injection.
D. Loopback test to verify communication channels and data integrity.
Answer: C
Explanation: Applying controlled harmonic currents during the test allows verifying the relay’s ability to filter out harmonics and function correctly during actual fault scenarios with harmonic components.
What is the main challenge associated with using distance relays for protecting distribution feeders with distributed generation sources?
A. Difficulty setting impedance values due to varying line lengths.
B. Sensitivity to transient voltage spikes caused by lightning strikes.
C. Interference from harmonic currents produced by inverter-based sources.
D. Inability to differentiate between internal faults and load currents from distributed generation units.
Answer: D
Explanation: Distributed generation can create impedance signatures similar to faults, making accurate fault location and isolation challenging for distance relays.
How can the coordination time curves of overcurrent relays be adjusted to ensure selective tripping in a power system?
A. By modifying the CT ratios for each relay.
B. By setting different pickup current levels for each relay.
C. By adjusting the time dial settings for each relay.
D. All of the above
Answer: D
Explanation: CT ratios, pickup currents, and time dial settings can be adjusted to achieve optimal coordination and ensure the closest relay to the fault trips first, minimizing equipment damage.
What is the primary function of a recloser relay system on an overhead distribution line?
A. Detect and trip the circuit breaker for sustained overcurrent conditions.
B. Automatically attempt to reclose the line after a temporary fault event.
C. Monitor and adjust line voltage to maintain stable power supply.
D. Provide backup protection for feeder relays in case of faults.
Answer: B
Explanation: Recloser relays automatically reclose the circuit breaker a predetermined number of times after fault clearing, allowing temporary faults to be cleared without service interruption while still providing protection against sustained problems.
How can fiber optic communication be integrated into a backup protection scheme for transformers?
A. By transmitting trip commands from backup relays to remote breakers.
B. By using fiber optic sensors for monitoring critical parameters like oil temperature.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Fiber optic communication can be used for both transmitting trip commands to backup relays and for sensing critical parameters remotely, enhancing backup protection performance for transformers.
What is the main disadvantage of using thermal overload relays compared to electronic overload relays for motor protection?
A. Slower response time to overload conditions.
B. Lack of adjustable settings and calibrated protection curves.
C. Susceptibility to ambient temperature variations affecting accuracy.
D. All of the above
Answer: D
Explanation: Thermal relays suffer from slow response times, limited settings, and sensitivity to ambient temperature, while electronic relays offer faster response, adjustable settings, and better accuracy.
Which type of relay is most suitable for protecting underground cables against low-impedance faults?
A. Distance relay with impedance measurement and zone selection.
B. Differential relay with high sensitivity and pilot communication.
C. Directional overcurrent relay with phase comparison and time delay.
D. Earth fault relay with adjustable current threshold and fast tripping.
Answer: B
Explanation: Differential relays compare currents at both ends of the cable, making them effective for detecting low-impedance faults, and pilot communication enhances their operation with faster tripping and improved selectivity.
What is the key benefit of using time-overcurrent relays with inverse-time curves for overload protection in feeders?
A. Faster tripping times for high fault currents compared to normal overcurrent relays.
B. Improved coordination with upstream and downstream protection devices for selective tripping.
C. Increased sensitivity to detect low-level overload currents compared to time-delay relays.
D. All of the above
Answer: B
Explanation: Inverse-time curves provide longer tripping times for lower overcurrents, allowing coordination with other relays before tripping for heavier faults closer to the relay location.
What is the primary drawback of using differential relays for protection of overhead lines with high impedance towers?
A. Difficulty in setting sensitivity due to varying line impedance with weather conditions.
B. Susceptibility to transient voltage spikes caused by lightning strikes.
C. Interference from harmonic currents produced by inverter-based sources.
D. Inability to distinguish between internal faults and load currents from distributed generation units.
Answer: A
Explanation: High impedance towers and changing weather conditions can significantly affect line impedance, making it challenging to set optimal sensitivity for differential relays to avoid nuisance tripping or missed faults.
How can the tripping characteristic of a directional earth fault relay be adjusted to provide backup protection for overcurrent relays on feeders?
A. By choosing a more sensitive earth fault current setting compared to the overcurrent relays.
B. By setting a longer time delay for tripping compared to the overcurrent relays.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Combining higher sensitivity for earth fault currents and a longer time delay compared to overcurrent relays allows the directional earth fault relay to act as backup for phase faults, tripping only if the overcurrent relays fail to clear the fault within the set time.
What is the main benefit of using fiber optic communication for inter-relay communication in substation automation systems?
A. Faster data transmission speeds compared to traditional copper cables.
B. Enhanced security and immunity to electromagnetic interference and hacking attempts.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Fiber optic communication offers both high speed data transmission and superior security compared to traditional copper cables, making it advantageous for substation automation systems where reliable and secure data exchange is crucial.
How can the settings of a distance relay be adjusted to provide backup protection for a differential relay protecting a transformer?
A. By setting the impedance reach to cover the entire transformer winding.
B. By choosing a more sensitive impedance characteristic with lower reach settings.
C. By utilizing a directional element with phase angle compensation for transformer connections.
D. All of the above
Answer: D
Explanation: Setting the reach to cover the transformer, using a sensitive characteristic, and applying phase angle compensation for transformer connections configure the distance relay as backup for the differential relay, tripping only if the differential relay fails to operate for internal transformer faults.
What is the main disadvantage of using synchronizing relays for paralleling generators with large capacity difference?
A. Increased risk of voltage and frequency transients during synchronization.
B. Longer synchronization process compared to manual methods.
C. Higher cost and complexity compared to simpler connection strategies.
D. All of the above
Answer: A
Explanation: Synchronizing large capacity generators requires careful control to avoid significant transients during connection, and using only synchronizing relays might not be sufficient to mitigate these risks.
How can the sensitivity of a zero sequence overcurrent relay be adjusted to optimize its performance for unbalance protection in distribution networks?
A. By choosing a CT ratio with higher current scaling factor for the neutral conductor.
B. By setting a lower pickup current threshold for the relay compared to phase currents.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Increasing the CT ratio for the neutral current and setting a lower pickup threshold for the relay allows it to detect even small imbalances in phase currents effectively, protecting against unbalance conditions in distribution networks.
What is the main function of a carrier current communication scheme used in line protection?
A. Transmit trip commands and relay setting data between remote locations.
B. Utilize the existing power line as a communication channel for data exchange.
C. Monitor line currents and voltages continuously for fault detection.
D. Provide backup protection for other relay schemes in case of communication failures.
Answer: B
Explanation: Carrier current communication transmits data by modulating high-frequency signals onto the power line, allowing communication between relays without dedicated communication infrastructure.
What is the major drawback of using overcurrent relays with time-dial settings for overload protection in long overhead lines?
A. Increased sensitivity to transient load fluctuations causing nuisance tripping.
B. Inability to differentiate between overload and fault conditions due to long tripping times.
C. Difficulty in coordinating with downstream relays due to varying line impedance values.
D. All of the above
Answer: D
Explanation: Time-dial settings on overcurrent relays for long lines can lead to nuisance tripping during temporary load fluctuations, difficulty in differentiating overload from faults due to longer tripping times, and challenges in coordinating with downstream relays due to variations in line impedance.
How can the settings of a negative sequence overcurrent relay be adjusted to provide backup protection for a differential relay protecting a generator?
A. By choosing a more sensitive negative sequence current setting compared to the differential relay.
B. By setting a longer time delay for tripping compared to the differential relay.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Combining higher sensitivity for negative sequence currents and a longer time delay compared to the differential relay allows the negative sequence overcurrent relay to act as backup for the differential relay, tripping only if the differential relay fails to detect internal generator faults.
What is the primary advantage of using digital protective relays compared to electromechanical relays?
A. Faster tripping times and improved coordination with other relays.
B. Increased accuracy and sensitivity to low-level fault currents.
C. Enhanced functionality with features like data recording and fault analysis.
D. All of the above
Answer: D
Explanation: Digital relays offer faster tripping, better coordination, increased sensitivity, and additional functionalities like data recording and fault analysis, making them superior to electromechanical relays in modern protection systems.
How can the communication bandwidth requirements for inter-relay communication in power systems be reduced?
A. By utilizing data compression techniques to minimize the amount of transmitted information.
B. By implementing event-driven communication where data is only sent when necessary.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Combining data compression with event-driven communication effectively reduces the amount of data transmitted, lowering bandwidth requirements while still ensuring sufficient information exchange for reliable protection operations.
What is the main limitation of using distance relays for protection of short feeders with high fault currents?
A. Difficulty in achieving accurate impedance measurement due to line length limitations.
B. Susceptibility to transient voltage spikes caused by switching events on the network.
C. Inability to distinguish between internal faults and load currents from nearby sources.
D. All of the above
Answer: A
Explanation: Short feeders pose challenges for distance relays due to the limited impedance variations they present, making fault location and discrimination difficult.
How can the settings of a pilot relay scheme for transformer differential protection be adjusted to prevent nuisance tripping due to inrush currents during energization?
A. By setting a time delay for tripping after exceeding the pickup current during energization.
B. By utilizing a harmonic restraint feature to filter out inrush current harmonics.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Combining a time delay during energization and harmonic restraint helps the pilot relay differentiate between normal inrush currents during transformer energization and actual internal faults.
What is the key benefit of using fiber optic sensors for monitoring critical parameters in substations compared to traditional sensors?
A. Enhanced immunity to electromagnetic interference and signal noise.
B. High bandwidth and accuracy for data acquisition and monitoring.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Fiber optic sensors offer both high resistance to interference and high accuracy for sensing various parameters like temperature, vibration, and current, making them valuable for monitoring substation equipment effectively.
What is the main challenge associated with using pilot relay schemes for protection of overhead lines in geographically dispersed networks?
A. Limited communication bandwidth for data exchange between remote terminals.
B. Susceptibility to communication failures caused by weather conditions or cyberattacks.
C. Difficulty in synchronizing fault signals due to time delays in data transmission.
D. All of the above
Answer: D
Explanation: Widely dispersed networks present challenges for pilot relays due to limitations in bandwidth, sensitivity to communication failures, and potential difficulties in synchronizing fault signals across long distances.
How can the settings of a distance relay be adjusted to protect underground cable feeders against high-impedance faults near the end of the line?
A. By setting the impedance reach to cover the entire cable length.
B. By choosing a more sensitive impedance characteristic with lower reach settings.
C. Utilizing a directional element with phase compensation for cable capacitance.
D. All of the above
Answer: C
Explanation: High-impedance faults near the end of underground cables can be challenging for distance relays due to cable capacitance. Using a directional element with phase compensation helps mitigate this effect and allows accurate fault location.
What is the key benefit of using time-domain overcurrent relays compared to conventional overcurrent relays for motor protection?
A. Faster tripping times for overload conditions due to analysis of current waveform.
B. Improved discrimination between starting currents and fault currents based on current signature.
C. Reduced sensitivity to ambient temperature variations compared to thermal relays.
D. All of the above
Answer: B
Explanation: Time-domain relays analyze the shape and harmonics of the current waveform, allowing them to differentiate between normal motor starting currents and abnormal fault currents, enhancing protection and reducing nuisance tripping.
How can the security of communication channels in inter-relay communication systems be enhanced against cyberattacks?
A. By implementing data encryption techniques to protect against unauthorized access.
B. Utilizing authentication protocols to verify the legitimacy of communicating devices.
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Combining data encryption with authentication protocols significantly strengthens the security of inter-relay communication, protecting against unauthorized access and ensuring information integrity in critical infrastructure.
What is the main disadvantage of using thermal overload relays for protecting large electric motors compared to electronic overload relays?
A. Slower response times to overload conditions, potentially leading to motor damage.
B. Lack of adjustable settings and calibrated protection curves for optimal performance.
C. Susceptibility to ambient temperature variations affecting accuracy and tripping thresholds.
D. All of the above
Answer: D
Explanation: Thermal relays suffer from slow response times, limited settings, and sensitivity to ambient temperature, while electronic relays offer faster response, adjustable settings, and better accuracy, making them more suitable for protecting large, critical motors.
How can the settings of a loss-of-excitation relay be adjusted to provide backup protection for overcurrent relays on generators?
A. By setting a lower voltage loss threshold compared to the overcurrent relays.
B. By setting a longer time delay for tripping compared to the overcurrent relays.
C. Both A and B
D. Neither A nor B
Answer: C
Lower voltage loss threshold and longer time delay compared to overcurrent relays allow the loss-of-excitation relay to act as backup, tripping only if the generator loses field excitation and the overcurrent relays fail to clear the fault within the set time.
What is the primary function of a protective relay?
A. Monitor voltage
B. Control frequency
C. Detect faults and initiate protective actions
D. Regulate current
Answer: C
Explanation: Protective relays are devices designed to detect abnormal conditions in electrical circuits and initiate appropriate actions to prevent damage.
In power systems, which type of protective relay is commonly used to protect against overcurrents?
A. Differential relay
B. Distance relay
C. Overcurrent relay
D. Directional relay
Answer: C
Explanation: Overcurrent relays are designed to trip a circuit when the current exceeds a preset value.
What is the purpose of a differential relay in a power system?
A. Protect against overvoltage
B. Protect against overcurrent
C. Protect against internal faults
D. Protect against external faults
Answer: C
Explanation: Differential relays compare the current entering and leaving a protected zone to detect internal faults.
Which relay is commonly used for the protection of transformers against major internal faults?
A. Overcurrent relay
B. Differential relay
C. Distance relay
D. Underfrequency relay
Answer: B
Explanation: Differential relays are effective in detecting and protecting transformers against internal faults.
Read Next:
