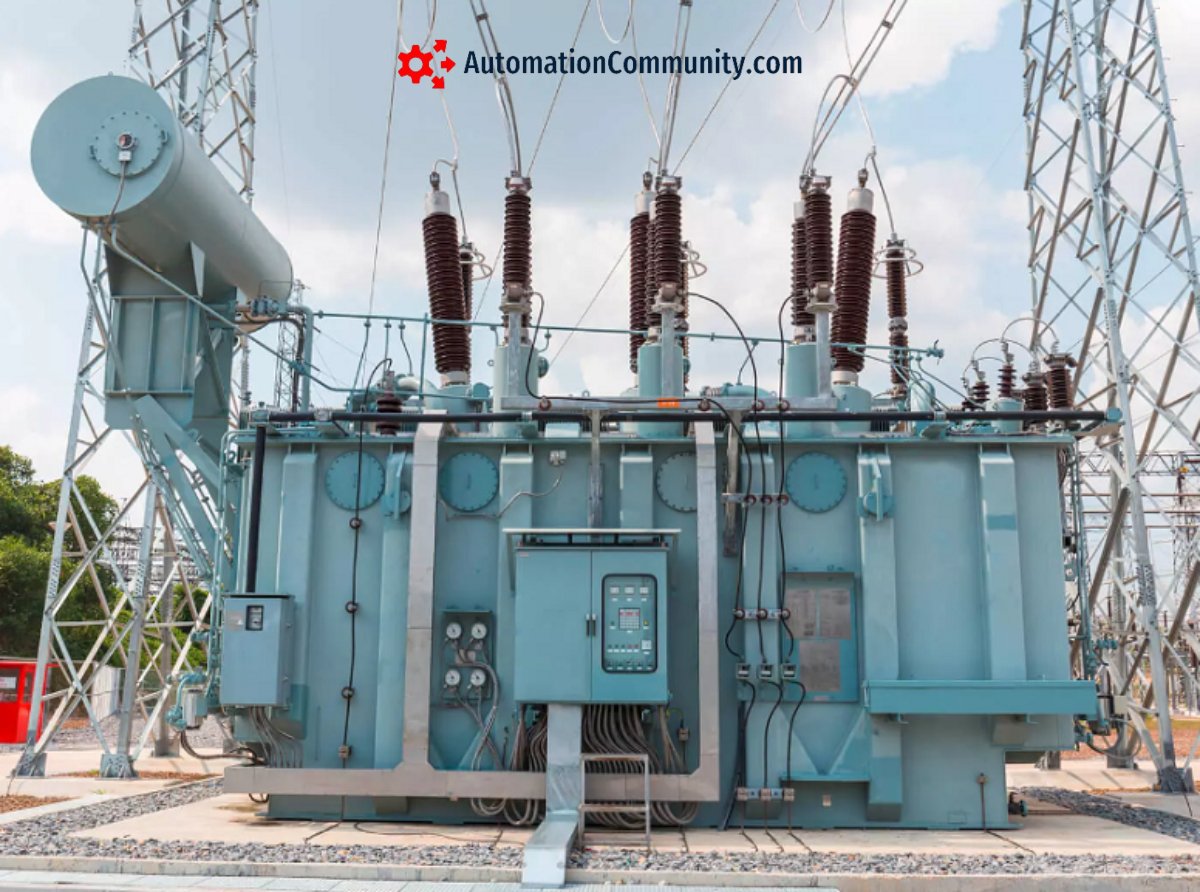

Expert Picked 100 MCQs On Voltage Transformers
Take your understanding of Voltage Transformers to new heights with “Expert Picked 100 MCQs On Voltage Transformers. This collection of multiple-choice questions is perfect for enthusiasts, students, and professionals looking to solidify their knowledge.
The principle of operation of a voltage transformer relies on:
A. Electromagnetic induction
B. Chemical reactions
C. Photovoltaic effect
D. Mechanical conversion
Answer: A
Explanation: Voltage transformers operate based on the fundamental principle of electromagnetic induction, where a changing magnetic field in one coil induces a voltage in a nearby coil. This allows for voltage stepping up or stepping down without direct electrical connection.
The ratio of turns in the primary and secondary windings of a voltage transformer determines:
A. Its core material
B. Its operating frequency
C. The voltage step-up/step-down ratio
D. Its power rating
Answer: C
Explanation: The turns ratio directly dictates the induced voltage in the secondary winding compared to the primary voltage. More turns in the secondary lead to a higher induced voltage (step-up), while fewer turns lead to a lower voltage (step-down).
The leakage flux in a voltage transformer results in:
A. Increased efficiency
B. Reduced core losses
C. Increased measurement error
D. Improved voltage regulation
Answer: C
Explanation: Leakage flux represents magnetic flux that doesn’t link both windings efficiently. This “lost” flux contributes to measurement errors as it doesn’t induce the intended voltage in the secondary winding.
Which statement is FALSE about grounding in a voltage transformer?
A. Grounding the core is essential for safety.
B. Grounding the secondary winding can improve accuracy.
C. Grounding the primary winding protects against surges.
D. Proper grounding reduces stray currents and EMI.
Answer: B
Explanation: Grounding the secondary winding can introduce ground potential differences and affect measurement accuracy. Grounding the primary and core is crucial for safety and EMI reduction.
The most common type of core material used in voltage transformers is:
A. Air
B. Iron
C. Copper
D. Aluminum
Answer: B
Explanation: Iron, specifically laminated steel, is the preferred core material due to its high permeability, reducing the reluctance of the magnetic path and maximizing induced voltage.
The voltage regulation of a voltage transformer refers to its ability to:
A. Maintain constant output voltage with varying load
B. Operate at different frequencies
C. Withstand high temperatures
D. Change polarity of the output voltage
Answer: A
Explanation: Voltage regulation measures the change in output voltage compared to the nominal value when the load varies. A good voltage transformer exhibits minimal voltage variation for reliable measurements.
What is the primary function of a fuse in a voltage transformer?
A. To limit short-circuit currents in the primary winding.
B. To protect the secondary winding from overloads.
C. To isolate the transformer from the power source.
D. To provide voltage regulation.
Answer: A
Explanation: The fuse in a voltage transformer primarily protects against high currents in the primary circuit due to faults or overloads, preventing damage to the transformer and connected equipment.
Which safety precaution is NOT recommended when working with voltage transformers?
A. Wear appropriate personal protective equipment (PPE).
B. Verify the absence of voltage using a voltmeter before touching.
C. Ground the transformer properly.
D. Operate the transformer in a well-ventilated area.
Answer: D
Explanation: While good ventilation is generally recommended, it’s not a direct safety precaution specific to voltage transformers. Grounding, PPE, and voltage verification are crucial safety measures.
What is the term used for the ratio of the voltage applied to the primary winding to the voltage induced in the secondary winding?
A. Turns ratio
B. Voltage regulation
C. Leakage flux
D. Efficiency
Answer: A
Explanation: The turns ratio represents the fundamental relationship between the primary and secondary voltages, determining the voltage step-up or step-down effect.
What type of connection is typically used for the primary winding of a voltage transformer?
A. Delta (Δ)
B. Star (Y)
C. Either Δ or Y depending on the application
D. Open circuit
Answer: C
Explanation: Both Δ and Y connections are used for primary windings, with the choice depending on factors like grounding requirements, line voltage levels, and metering configurations.
What characteristic of a voltage transformer is most important for accurate current measurement using a current transformer (CT)?
A. High voltage rating
B. Low leakage flux
C. High efficiency
D. Large core size
Answer: B
Explanation: Minimal leakage flux ensures that most of the magnetic flux links both windings efficiently, leading to accurate current measurement through the CT connected to the secondary winding.
What is the main difference between a potential transformer (PT) and a current transformer (CT)?
A. PT steps up voltage, while CT steps up current.
B. PT operates on high voltage circuits, while CT operates on low voltage circuits.
C. PT has a high turns ratio, while CT has a low turns ratio.
D. PT measures voltage, while CT measures current.
Answer: D
Explanation: Although both involve transformers, their primary function differentiates them. PTs measure voltage, while CTs measure current, requiring different designs and applications.
Which phenomenon primarily contributes to the core losses in a voltage transformer?
A. Eddy currents
B. Hysteresis
C. Both A and B
D. Neither A nor B
Answer: C
Explanation: Core losses in voltage transformers are mainly caused by eddy currents induced in the core material (typically iron) and hysteresis losses due to the magnetization and demagnetization cycles.
What is the benefit of using an oil-immersed voltage transformer compared to an air-cooled one?
A. Higher voltage rating
B. Improved heat dissipation
C. Reduced size and weight
D. Lower cost
Answer: B
Explanation: Oil-immersed transformers offer better heat dissipation due to the surrounding oil, allowing for higher operating temperatures and potentially higher ratings compared to air-cooled designs.
What is the purpose of the nameplate on a voltage transformer?
A. To display the manufacturer’s logo
B. To provide safety warnings
C. To specify the voltage and current ratings
D. To indicate the serial number
Answer: C
Explanation: The nameplate provides crucial information about the transformer’s operating parameters, including voltage and current ratings, frequency, and connection diagrams, ensuring safe and correct usage.
Which of the following statements is TRUE about the secondary winding of a voltage transformer?
A. It typically has fewer turns than the primary winding.
B. It is always connected to a load.
C. It can be open-circuited without damaging the transformer.
D. Its voltage is always higher than the primary voltage.
Answer: C
Explanation: Unlike the primary, the secondary winding can be left open-circuited without causing damage to itself. However, it’s important to consider potential voltage surges when leaving it open for extended periods.
A voltage transformer with a turns ratio of 10:1 is supplied with 120V at the primary winding. What is the induced voltage at the secondary winding?
A. 1200V
B. 12V
C. 1200mV
D. 1.2V
Answer: B
Explanation: Remember the turns ratio dictates the voltage step-up/down. With a 10:1 ratio and 120V primary, the secondary voltage is 120V / 10 = 12V (step-down).
When the load connected to the secondary winding of a voltage transformer increases, what happens to the primary current?
A. It remains constant.
B. It decreases proportionally.
C. It increases proportionally.
D. It becomes unpredictable.
Answer: C
Explanation: To maintain constant power transfer despite the voltage change, the current changes inversely in the opposite winding. In this case, increased load on the secondary demands more current from the primary to maintain power balance.
What safety precaution is NOT necessary when handling a voltage transformer, even if it’s de-energized?
A. Verify the absence of voltage with a voltmeter before touching.
B. Wear appropriate personal protective equipment (PPE).
C. Discharge any stored energy in the capacitor bushings (if present).
D. Dispose of it in a designated recycling facility.
Answer: D
Explanation: While proper disposal is important for environmental reasons, it’s not directly related to immediate safety precautions when handling the transformer itself. All other options are crucial safety measures.
Which of the following factors DOES NOT contribute to the efficiency of a voltage transformer?
A. Low core losses
B. High leakage flux
C. Minimized copper losses in the windings
D. Proper operating temperature
Answer: B
Explanation: High leakage flux signifies magnetic flux not effectively linking both windings, leading to energy losses and reduced efficiency. Lower leakage flux is desired for optimal performance.
What is the most common application of a voltage transformer?
A. Power transmission lines
B. Arc welding machines
C. Measurement and protection in power systems
D. Electric vehicle charging stations
Answer: C
Explanation: Voltage transformers are widely used in various measurement and protection applications within power systems, such as metering voltage levels, relaying for fault detection, and synchronizing generators.
The purpose of a turns ratio test on a voltage transformer is to:
A. Measure the core losses of the transformer.
B. Determine the insulation quality between windings.
C. Verify the correct polarity of the windings.
D. Calculate the ratio of primary to secondary winding turns.
Answer: D
Explanation: While other options involve different tests, the turns ratio test specifically measures the voltage induced in the secondary compared to the applied primary voltage, revealing the turns ratio.
During a dielectric test on a voltage transformer, a high voltage is applied to:
A. Measure the temperature rise under load.
B. Assess the efficiency at different operating points.
C. Evaluate the insulation strength between windings and core.
D. Verify the continuity of the winding connections.
Answer: C
Explanation: The dielectric test aims to identify potential insulation breakdown by applying high voltage and monitoring for leakage current, directly testing the insulation integrity.
The primary objective of a thermal overload test on a voltage transformer is to:
A. Calibrate the measurement accuracy of the transformer.
B. Ensure the transformer operates within safe temperature limits.
C. Determine the optimal load conditions for maximum efficiency.
D. Measure the leakage flux in the transformer core.
Answer: B
Explanation: Thermal overload tests simulate extreme load conditions and monitor temperature rise to ensure the transformer can handle potential overloads without exceeding safe operating limits.
In a step-up voltage transformer, the winding with more turns is typically the:
A. Primary winding, as it receives the lower voltage.
B. Secondary winding, as it needs to induce the higher voltage.
C. Both windings have the same number of turns.
D. The answer depends on the specific application, not the step-up function.
Answer: B
Explanation: According to the turns ratio principle, more turns in the secondary winding induce a higher voltage compared to the primary, achieving the step-up functionality.
For metering purposes in high-voltage transmission lines, which type of voltage transformer is commonly used?
A. Air-core transformer with high efficiency.
B. Oil-immersed transformer for improved insulation and cooling.
C. Capacitor transformer with minimal leakage flux.
D. None of the above, as direct measurement is possible on transmission lines.
Answer: B
Explanation: High-voltage environments require robust insulation and cooling. Oil-immersed transformers offer these advantages, making them suitable for metering in transmission lines.
What characteristic is monitored during a winding resistance test on a voltage transformer?
A. Insulation strength between windings and core.
B. Resistance within each winding to identify potential breaks or shorts.
C. Core losses at different operating frequencies.
D. Turns ratio accuracy under various load conditions.
Answer: B
Explanation: Winding resistance tests measure the electrical resistance within each winding, helping identify potential issues like broken conductors or loose connections.
Which test is NOT typically performed on a voltage transformer?
A. Continuity test for winding integrity.
B. Phasing test to verify correct connections.
C. Dielectric test for insulation strength.
D. Thermal overload test for safe operating limits.
Answer: B
Explanation: Phasing tests are typically performed on power transformers to ensure proper phase relationships between different phases, not on voltage transformers specifically designed for voltage measurement.
A cast resin encapsulated voltage transformer is advantageous for:
A. High voltage applications due to superior insulation.
B. Compact size and lower weight compared to oil-immersed designs.
C. High efficiency at various load levels.
D. Step-down applications requiring minimal voltage change.
Answer: B
Explanation: Cast resin transformers offer compact size and lower weight, making them suitable for space-constrained applications where high voltage insulation isn’t the primary concern.
Which statement is TRUE about instrument transformers (like voltage transformers) compared to power transformers?
A. Instrument transformers operate at higher voltages and currents.
B. Instrument transformers prioritize efficiency over accuracy.
C. Instrument transformers utilize the same construction principles as power transformers.
D. Instrument transformers typically handle lower power levels for measurement purposes.
Answer: D
Explanation: Instrument transformers prioritize accurate voltage or current measurement, even at lower power levels compared to power transformers designed for bulk power transfer.
What is the primary function of a voltage transformer?
A. Current regulation
B. Voltage regulation
C. Power generation
D. Frequency modulation
Answer: B
Explanation: Voltage transformers are designed to regulate and step down voltage levels for measurement and protection purposes.
Which of the following is NOT a type of voltage transformer?
A. Potential transformer
B. Auto transformer
C. Step-up transformer
D. Distribution transformer
Answer: C
Explanation: Step-up transformers are designed to increase voltage levels, whereas voltage transformers generally step down voltage.
What is the ratio of turns between the primary and secondary windings in a typical potential transformer?
A. 1:1
B. 2:1
C. 100:1
D. 1000:1
Answer: C
Explanation: Potential transformers often have a high turns ratio, such as 100:1, to step down high voltage to a manageable level.
In which application are voltage transformers commonly used?
A. Power distribution
B. Space exploration
C. Underwater communication
D. Agricultural irrigation
Answer: A
Explanation: Voltage transformers play a crucial role in power distribution systems for measuring and protecting equipment.
What is the purpose of the magnetic core in a voltage transformer?
A. Enhance energy efficiency
B. Increase the physical size
C. Reduce the turns ratio
D. Improve electrical conductivity
Answer: A
Explanation: The magnetic core in a voltage transformer helps in efficiently transferring energy between the primary and secondary windings.
Which material is commonly used for the core of a voltage transformer?
A. Copper
B. Aluminum
C. Silicon steel
D. Plastic
Answer: C
Explanation: Silicon steel is preferred for transformer cores due to its magnetic properties and low energy loss.
Which factor is crucial for the accuracy of voltage transformers?
A. Temperature
B. Humidity
C. Altitude
D. Wind speed
Answer: A
Explanation: The accuracy of voltage transformers is influenced by temperature, and they are often calibrated for specific temperature ranges.
What is the primary purpose of a burden in a voltage transformer?
A. Increase voltage
B. Regulate frequency
C. Control current
D. Provide a load for accurate measurement
Answer: D
Explanation: The burden in a voltage transformer is the load impedance, ensuring accurate voltage measurement.
What is the significance of the accuracy class in voltage transformers?
A. Determines the physical size
B. Indicates the manufacturing date
C. Specifies the permissible error limits
D. Determines the color coding
Answer: C
Explanation: Accuracy class defines the permissible error limits of voltage transformers under specified conditions.
Which parameter is NOT measured directly by a voltage transformer?
A. Voltage
B. Current
C. Power factor
D. Frequency
Answer: B
Explanation: Voltage transformers primarily measure voltage, and current is measured by current transformers.
What is the purpose of the insulation in a voltage transformer?
A. Increase resistance
B. Prevent electric shock
C. Reduce temperature
D. Enhance magnetic flux
Answer: B
Explanation: Insulation in voltage transformers prevents electric shock and ensures safety during operation.
What happens to the voltage in the secondary winding if the primary winding voltage increases in a step-down transformer?
A. Increases
B. Decreases
C. Remains the same
D. Fluctuates randomly
Answer: B
Explanation: In a step-down transformer, an increase in primary voltage results in a proportional decrease in secondary voltage.
What is the effect of an open circuit on a voltage transformer?
A. Decreases voltage
B. Increases voltage
C. Causes a short circuit
D. No effect on voltage
Answer: B
Explanation: An open circuit in the secondary winding can lead to an increase in voltage, posing a risk to connected equipment.
Which factor does the accuracy of a voltage transformer depend on during transient conditions?
A. Power factor
B. Saturation
C. Harmonics
D. Temperature
Answer: C
Explanation: Harmonics during transient conditions can affect the accuracy of voltage transformers.
Which factor determines the insulation level of a voltage transformer?
A. Altitude
B. Temperature
C. Frequency
D. Voltage magnitude
Answer: D
Explanation: The insulation level is determined by the maximum voltage that the transformer can withstand without breakdown.
What is the primary advantage of using a gas-insulated voltage transformer?
A. Reduced size
B. Higher efficiency
C. Lower cost
D. Increased power factor
Answer: A
Explanation: Gas-insulated voltage transformers offer a compact design, making them suitable for limited space applications.
Which of the following is NOT a type of voltage transformer?
A. Potential transformer
B. Auto transformer
C. Step-up transformer
D. Distribution transformer
Answer: C
Explanation: Step-up transformers are designed to increase voltage levels, whereas voltage transformers generally step down voltage.
What is the ratio of turns between the primary and secondary windings in a typical potential transformer?
A. 1:1
B. 2:1
C. 100:1
D. 1000:1
Answer: C
Explanation: Potential transformers often have a high turns ratio, such as 100:1, to step down high voltage to a manageable level.
In which application are voltage transformers commonly used?
A. Power distribution
B. Space exploration
C. Underwater communication
D. Agricultural irrigation
Answer: A
Explanation: Voltage transformers play a crucial role in power distribution systems for measuring and protecting equipment.
What is the purpose of the magnetic core in a voltage transformer?
A. Enhance energy efficiency
B. Increase the physical size
C. Reduce the turns ratio
D. Improve electrical conductivity
Answer: A
Explanation: The magnetic core in a voltage transformer helps in efficiently transferring energy between the primary and secondary windings.
Which material is commonly used for the core of a voltage transformer?
A. Copper
B. Aluminum
C. Silicon steel
D. Plastic
Answer: C
Explanation: Silicon steel is preferred for transformer cores due to its magnetic properties and low energy loss.
What is the typical frequency range for voltage transformers in power systems?
a) 10 Hz – 50 Hz
b) 50 Hz – 60 Hz
C. 60 Hz – 400 Hz
D. 400 Hz – 1 kHz
Answer: C
Explanation: Voltage transformers in power systems are designed to operate within the common frequency range of 60 Hz to 400 Hz.
Which factor is crucial for the accuracy of voltage transformers?
A. Temperature
B. Humidity
C. Altitude
D. Wind speed
Answer: A
Explanation: The accuracy of voltage transformers is influenced by temperature, and they are often calibrated for specific temperature ranges.
What is the primary purpose of a burden in a voltage transformer?
A. Increase voltage
B. Regulate frequency
C. Control current
D. Provide a load for accurate measurement
Answer: D
Explanation: The burden in a voltage transformer is the load impedance, ensuring accurate voltage measurement.
What is the significance of the accuracy class in voltage transformers?
A. Determines the physical size
B. Indicates the manufacturing date
C. Specifies the permissible error limits
D. Determines the color coding
Answer: C
Explanation: Accuracy class defines the permissible error limits of voltage transformers under specified conditions.
In which configuration are voltage transformers commonly connected in power systems?
A,. Series
B. Parallel
C. Delta
D. Star
Answer: B
Explanation: Voltage transformers are typically connected in parallel to ensure accurate measurement and protection of the system.
Which parameter is NOT measured directly by a voltage transformer?
A. Voltage
B. Current
C. Power factor
D. Frequency
Answer: B
Explanation: Voltage transformers primarily measure voltage, and current is measured by current transformers.
What is the purpose of the insulation in a voltage transformer?
A. Increase resistance
B. Prevent electric shock
C. Reduce temperature
D. Enhance magnetic flux
Answer: B
Explanation: Insulation in voltage transformers prevents electric shock and ensures safety during operation.
What happens to the voltage in the secondary winding if the primary winding voltage increases in a step-down transformer?
A. Increases
B. Decreases
C. Remains the same
D. Fluctuates randomly
Answer: B
Explanation: In a step-down transformer, an increase in primary voltage results in a proportional decrease in secondary voltage.
What is the typical voltage rating for a medium-voltage potential transformer?
A. 120 V
B. 240 V
C. 4160 V
D. 13,800 V
Answer: C
Explanation: Medium-voltage potential transformers are designed for voltage levels in the range of 4160 V
In which type of power system is a capacitive voltage transformer commonly used?
A. AC power system
B. DC power system
C. Hybrid power system
D. Renewable energy system
Answer: C
Explanation: Capacitive voltage transformers are often used in hybrid power systems combining AC and DC components.
Which factor is critical for the proper functioning of a voltage transformer in a marine environment?
A. Temperature
B. Salinity
C. Wind speed
D. Humidity
Answer: B
Explanation: Salinity in a marine environment can impact the performance and longevity of voltage transformers.
What is the purpose of the conservator tank in an oil-filled voltage transformer?
A. Increase voltage
B. Regulate frequency
C. Compensate for oil expansion and contraction
D. Enhance magnetic flux
Answer: C
Explanation: The conservator tank compensates for oil volume changes due to temperature variations, maintaining proper levels.
Which insulation material is commonly used for oil-filled voltage transformers?
A. Rubber
B. PVC
C. Cellulose
D. Fiberglass
Answer: C
Explanation: Cellulose is a common insulation material used in oil-filled voltage transformers due to its dielectric properties.
What is the primary purpose of the Buchholz relay in an oil-filled voltage transformer?
A. Temperature control
B. Oil purification
C. Overcurrent protection
D. Detecting internal faults
Answer: D
Explanation: The Buchholz relay is a protection device that detects internal faults, such as insulation breakdown or gas formation.
Which type of voltage transformer is suitable for outdoor installations without additional protective enclosures?
A. Indoor potential transformer
B. Outdoor potential transformer
C. Dry-type potential transformer
D. Gas-insulated potential transformer
Answer: B
Explanation: Outdoor potential transformers are designed to withstand environmental conditions without additional enclosures.
What is the purpose of the secondary winding in a voltage transformer?
A. Generate power
B. Step up voltage
C. Provide a voltage output for measurement and protection
D. Increase frequency
Answer: C
Explanation: The secondary winding of a voltage transformer is used to provide a scaled-down voltage output for measurement and protection devices.
What is the primary advantage of a dry-type voltage transformer?
A. Enhanced efficiency
B. Reduced fire risk
C. Lower cost
D. Increased power factor
Answer: B
Explanation: Dry-type voltage transformers eliminate the risk of oil-related fires, making them safer for certain applications.
Which insulation class is commonly used for high-voltage potential transformers?
A. Class A
B. Class B
C. Class F
D. Class H
Answer: D
Explanation: Class H insulation is suitable for high-voltage potential transformers, providing high thermal resistance.
What is the primary function of the grounding shield in a capacitive voltage transformer?
A. Enhance efficiency
B. Improve power factor
C. Reduce electromagnetic interference
D. Increase voltage
Answer: C
Explanation: The grounding shield in a capacitive voltage transformer helps reduce electromagnetic interference and ensures accurate measurements.
What is the typical accuracy class for revenue metering potential transformers?
A. 0.1
B. 0.2
C. 0.5
D. 1.0
Answer: A
Explanation: Revenue metering potential transformers often have a high accuracy class, such as 0.1, for precise energy measurement.
What is the primary purpose of the voltage regulator in a voltage transformer?
A. Control current
B. Adjust voltage levels
C. Monitor frequency
D. Protect against short circuits
Answer: B
Explanation: The voltage regulator in a voltage transformer is responsible for adjusting and maintaining desired voltage levels.
Which condition can cause saturation in the magnetic core of a voltage transformer?
A. Low voltage
B. High frequency
C. Low temperature
D. Low burden
Answer: B
Explanation: High frequencies can lead to magnetic core saturation in voltage transformers, affecting their performance.
What is the purpose of the surge arrester in a voltage transformer?
A. Regulate frequency
B. Control current
C. Protect against voltage surges
D. Enhance magnetic flux
Answer: C
Explanation: The surge arrester in a voltage transformer is designed to protect against high voltage surges.
In which type of environment is a cast resin voltage transformer commonly used?
A. Underground
B. High-altitude
C. Marine
D. Indoor
Answer: D
Explanation: Cast resin voltage transformers are suitable for indoor applications due to their construction and insulation properties.
What is the primary advantage of a gas-insulated potential transformer in terms of maintenance?
A. Low maintenance
B. Easy accessibility
C. Quick repairs
D. Reduced cost
Answer: A
Explanation: Gas-insulated potential transformers typically require low maintenance, contributing to their long-term reliability.
Which parameter is NOT influenced by the turns ratio in a voltage transformer?
A. Voltage
B. Current
C. Power factor
D. Frequency
Answer: D
Explanation: The turns ratio in a voltage transformer primarily affects the voltage transformation, not the frequency.
What is the purpose of the damping resistor in a voltage transformer circuit?
A. Increase voltage
B. Regulate frequency
C. Reduce overvoltage
D. Enhance magnetic flux
Answer: C
Explanation: The damping resistor helps prevent overvoltage in a voltage transformer circuit by dissipating excess energy.
Which factor is critical for the accuracy of a capacitive voltage transformer during transient conditions?
A. Power factor
B. Saturation
C. Harmonics
D. Temperature
Answer: C
Explanation: Harmonics during transient conditions can impact the accuracy of capacitive voltage transformers.
What is the purpose of the overload protection device in a voltage transformer?
A. Control current
B. Adjust voltage levels
C. Protect against short circuits
D. Prevent damage from excessive load
Answer: D
Explanation: The overload protection device prevents damage to a voltage transformer caused by excessive load.
Which type of voltage transformer is commonly used for laboratory testing and experimentation?
A. Cast resin potential transformer
B. Dry-type potential transformer
C. Portable potential transformer
D. Laboratory potential transformer
Answer: C
Explanation: Portable potential transformers are designed for ease of use in laboratory testing and experimentation scenarios.
Read Next:
